Products and Solutions
Light Sheet Microscopes

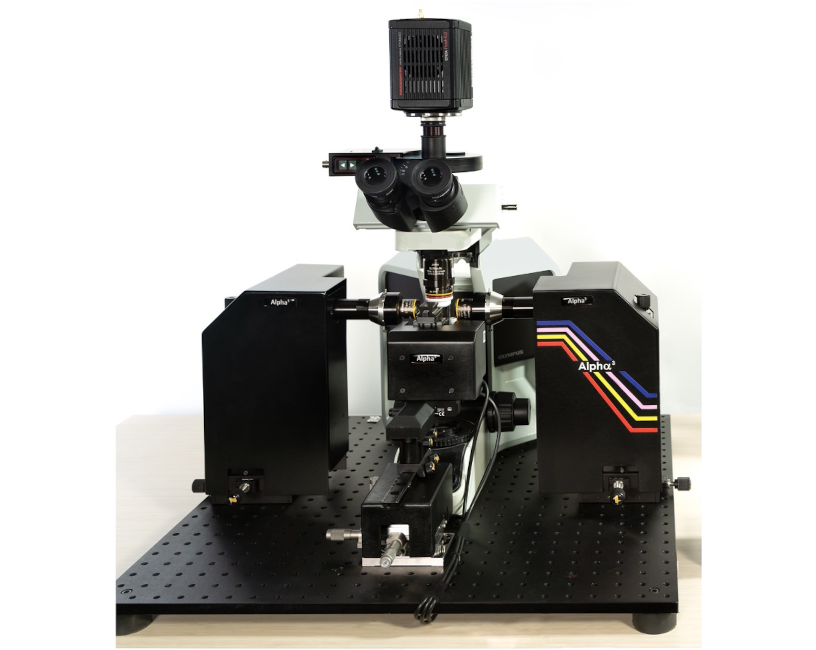

Alpha³ is a new generation of light sheet fluorescence microscope addressing the needs of high temporal resolution along with spatial high resolution to achieve qualitative and quantitative 3D imaging of fixed or live biological specimens.
From in‐vivo imaging to large cleared samples, the Alpha3 microscope delivers unprecedented image quality while keeping the necessary flexibility and modularity expected for cutting-edge scientific research instruments.
The Alpha3 light sheet microscope is a modular system designed for a small group of researchers (Laboratory/Individual Researcher).
.
Alpha³ Facility Edition combines key patented technologies to provide a uniform, optimally resolved and full field light sheet image. The Facility Edition comprises smart dual illuminators coupled with a wide field detection microscope; each multidirectional light sheet illuminator performs real time focus sweeping to extend the thinnest focus area over the entire field of view while improving homogeneity for artefacts-free imaging.
The Alpha3 Facility Edition is mostly used in research facilities/campus.
Beam Profilers
The BeamWave is a very high-resolution wavefront measurement device which allows a complete beam profile analysis and M ² measurements. With no moving parts or additional accessories, BeamWave® performs all critical laser beam measurements including intensity distribution, wavefront and beam propagation parameters.
Surface Analyzers
ZeeCam features the most advanced properties for fast and precise z-scanning. Instead of using traditional motorized means such as stepper motors or piezo devices, ZeeScan uses a proprietary optical assembly for 3D scanning integrating the latest advances of digital lens technology, leading to accurate and highly repeatable z-steps for 3D acquisition and analysis.
Compact 3D Digital Microscope ZeeScope is an all-in one 3D digital microscope controlled by PC with a single USB2 connection and integrating the proprietary PhaseView ZeeScan optical assembly. Accurate calibration is achieved using an automated procedure and stored in an internal memory to prevent any losses.
Image Acquisition Devices
NeoScan features the most advanced properties for fast and precise z-scanning. Instead of using traditional motorized means such as stepper motors or piezo devices, NeoScan uses a proprietary PhaseView optical assembly for 3D scanning, integrating the latest advances of digital lens technology for accurate and highly repeatable z-steps.

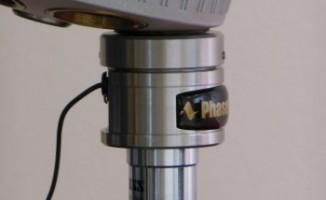

SmartScan
SmartScan provides ultra fast Z-stacking capabilities for microscopy applications by remotely scanning image planes.
Z-scanning is achieved without moving sample stage or objective thus allowing vibration free and fast acquisition time only limited by camera performance.

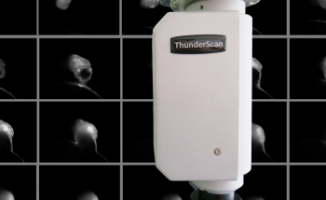

ThunderScan
ThunderScan provides ultra fast Z-stacking capabilities for microscopy applications by remotely scanning image planes thanks to an integrated tunable lens.
Z-scanning is achieved without moving sample stage or objective thus allowing vibration free and fast acquisition time only limited by camera performance.
